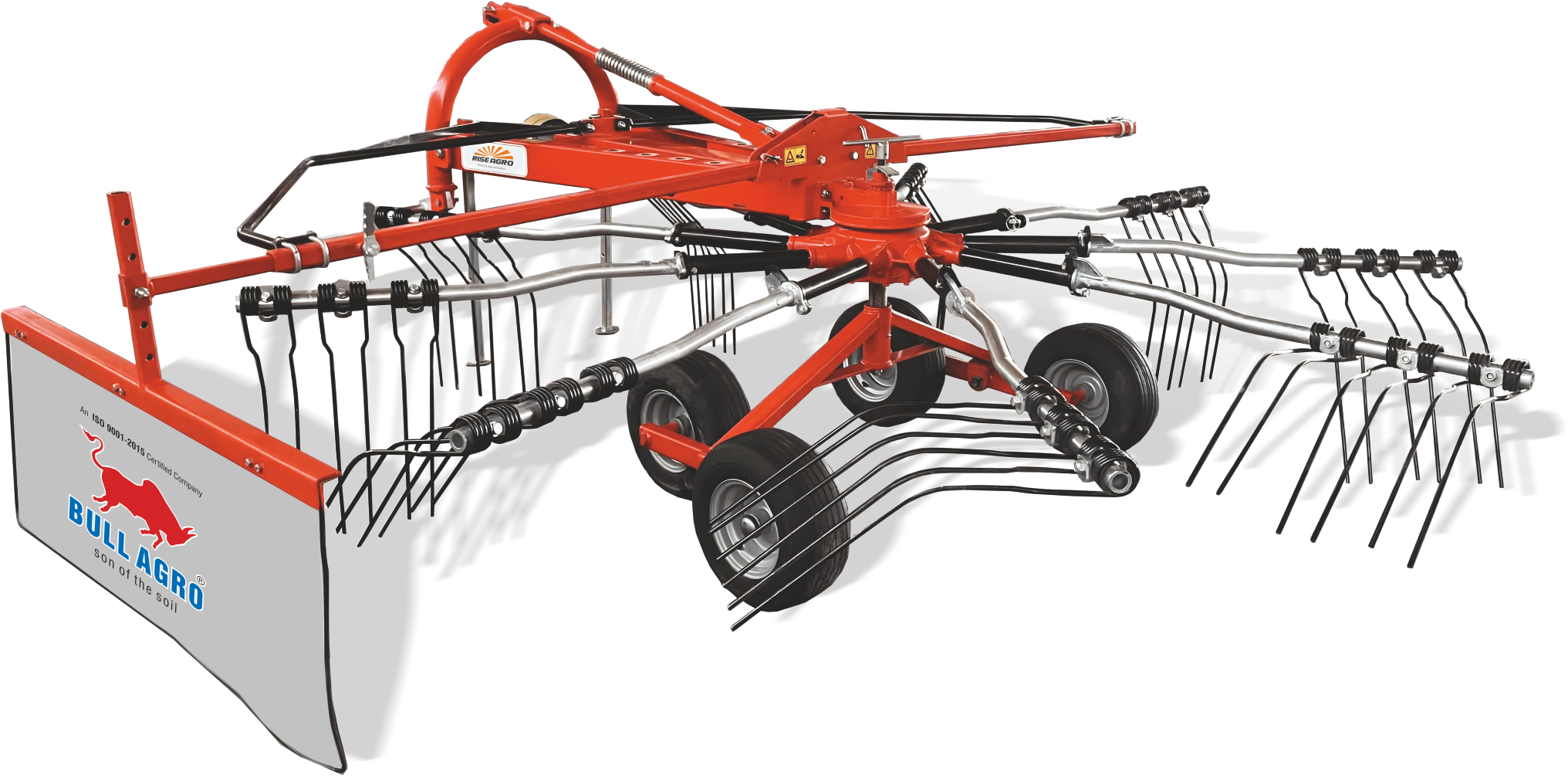

Hay rake BHR - 330
Hay rake BHR - 330
For Fast & Effortless Raking! Rake faster for baling, spend less time, maximize productivity. Save fuel & money.
Salient Features & Performance Attributes
- Advanced Control : CAT-II three-point hi-tech system for precise operation.
- Durable Performance : Tines built to withstand heavy, continuous use.
- Wide Coverage : Efficiently tackles large areas.
- Exceptional Stability : Four-wheel design ensures stability during operation.
- High-Performance Drivetrain : Gearbox with premium steel bevel and pinion for smooth operation.
Technical Specifications & Dimension Chart
| S.No | HAY RAKE SPECIFICATIONS | UNITS | BULL BAR 330 | BULL BAR 340 | |
| 1 | TRACTOR | Power | HP | 45 & above | 45 & above |
| 2 | PTO Speed | rpm | 540 | 540 | |
| 3 | HITCHING | Mounting | - | 3 Point Hitch | 3 Point Hitch |
| 4 | Hitch Category | - | Cat. I + II | Cat. I + II | |
| 5 | SIZE | Working width in m (foot) | mm | 3300 | 3000 |
| 6 | Rotor Diameter | mm | 2800 | 3000 | |
| 7 | Transport width with tine arms attached | mm | 3200 | 3200 | |
| 8 | Transport width with tine arms removed | mm | 1700 | 1700 | |
| 9 | Transport Height | mm | 2100 | 2100 | |
| 10 | Overall Size (L×W×H) | mm | 3315 × 3000 × 1110 | 3515 × 3200 × 1205 | |
| 11 | Weight | kg | 400 | 450 | |
| 12 | RAKE | Cleaning width (windrow width) | mm | 560–1350 | 600–1400 |
| 13 | Windrow Former | - | Cloth guard | Cloth guard | |
| 14 | Windrow Discharge (laying position) | - | Left | Left | |
| 15 | TRANSMISSION | Rotor Speed | rpm | 75 | 65 |
| 16 | No. of Rotor | No. | 1 | 1 | |
| 17 | Tine Arm per rotor | No. | 9 | 11 | |
| 18 | Dual Tine per Tine Arm | No. | 3 | 3 (4?) | |
| 19 | TYRE | Tyres | No. | 4 | 4 |
| 20 | Wheel size | - | 16 × 6.5–8PR | 16 × 6.5–8PR | |
| 21 | OTHERS | Rotor Height adjustment | - | Manual | Manual |
| 22 | Warning sign | - | Optional | Optional | |
| 23 | Gear Box Lubrication | hr | SAE-140 / 3 hr | SAE-140 / 5.8 hr | |
