SECONDARY LAND PREPARATORY • ROTAVATOR

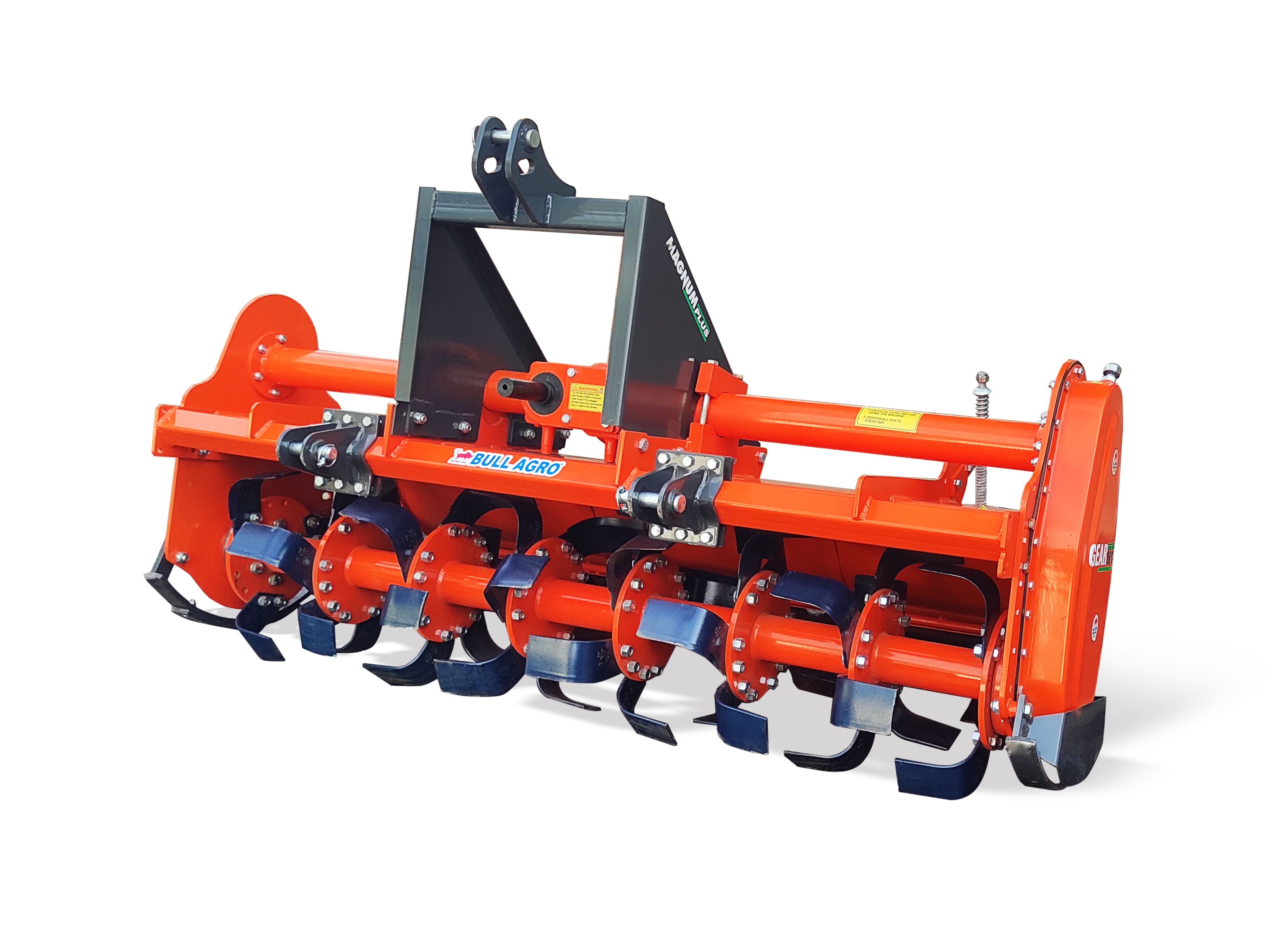

Magnum
Magnum
Magnificent Rotary Tiller! The specialist in medium & hard soil surface
Salient Features & Performance Attributes
- Suitable for medium clay and hard soils.
- Set the seed bed perfectly.
- Heavy duty structure.
- Runs on PTO 540/1000RPM speed performance.
- 3 Stage of Oil Seal to protect Gear Box side from mud water.
- Application base Gear ratio to be changed.
Technical Specifications & Dimension Chart
| SI.No | Model | Working Width | Speed | Side Drive | Tractor HP | Weight | Type of Blade | No. of Blades | |
| 1 | 36 SSG | 5 ft / 1500 mm | Single | Gear | 35–40 HP | 440 kg | L/C | 36 | |
| 2 | 42 SSG | 6 ft / 1750 mm | Single | Gear | 40–45 HP | 460 kg | L/C | 42 |
