SECONDARY LAND PREPARATORY • ROTAVATOR

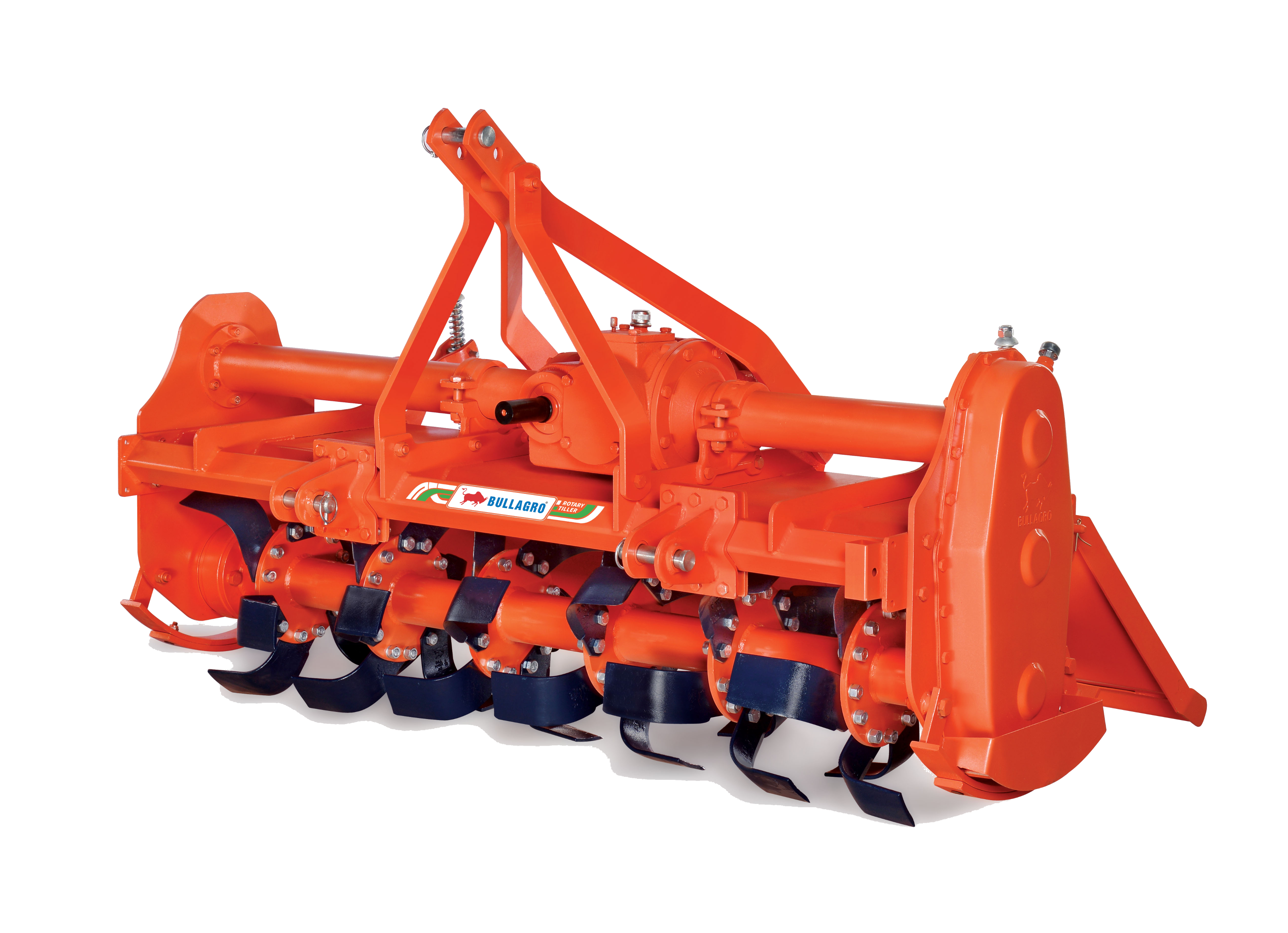

Regular & Optima
Regular & Optima
Dryland or Wetland; OPTIMUM Performance Guaranteed! Light weight models with single & multi speed options
Salient Features & Performance Attributes
- Available in Single and Multi speed models.
- High Quality raw materials are used for best performance.
- Perfectly designed rotor assembly ensures smooth operation of tractor.
- Suitable for Light and medium soil.
- Suitable for low and medium HP tractors.
- Suitable wet and semi wet application.
- L/C/J type blades can be fixed against application basis. Wet & Dry land models.
- Adjustable clevis bracket.
- Both sides Duo cone oil seal to protect from mud & water.
- Both Sides Oil Lubricated rotor bearings.
- Fitted with superior quality Bull Blades.
- Long lasting Anti corrosion powder coating.
- Depth skid with multiple adjustment.
- As per customer's various needs & applications. right gear ratio are made available for versatility.
Technical Specifications & Dimension Chart
| SI.No | Series | Model | Working Width | Speed | Side Drive | Tractor HP | Weight | Type of Blade | No. of Blades | Input RPM | Rotor RPM | |
| 1 | Regular | 36 SSG | 1530 mm | Single | Gear | 35–40 HP | 400 kg | L, C & J | 36 & 66 | 540 | 212* | |
| 2 | Regular | 42 SSG | 1810 mm | Single | Gear | 40–45 HP | 420 kg | L, C & J | 42 & 72 | 540 | 236** | |
| 3 | Regular | 48 SSG | 2100 mm | Single | Gear | 50–55 HP | 440 kg | L, C & J | 48 & 78 | 540 | 236** | |
| 4 | Regular | 36 MSG | 1530 mm | Multi | Gear | 35–40 HP | 410 kg | L/C | 36 | 540 | 179/200** | |
| 5 | Regular | 42 MSG | 1810 mm | Multi | Gear | 40–45 HP | 430 kg | L/C | 42 | 540 | 224/252 | |
| 6 | Regular | 48 SSG | 2100 mm | Multi | Gear | 50–55 HP | 450 kg | L/C | 48 | 1000 | 232 |
