SECONDARY LAND PREPARATORY • ROTAVATOR

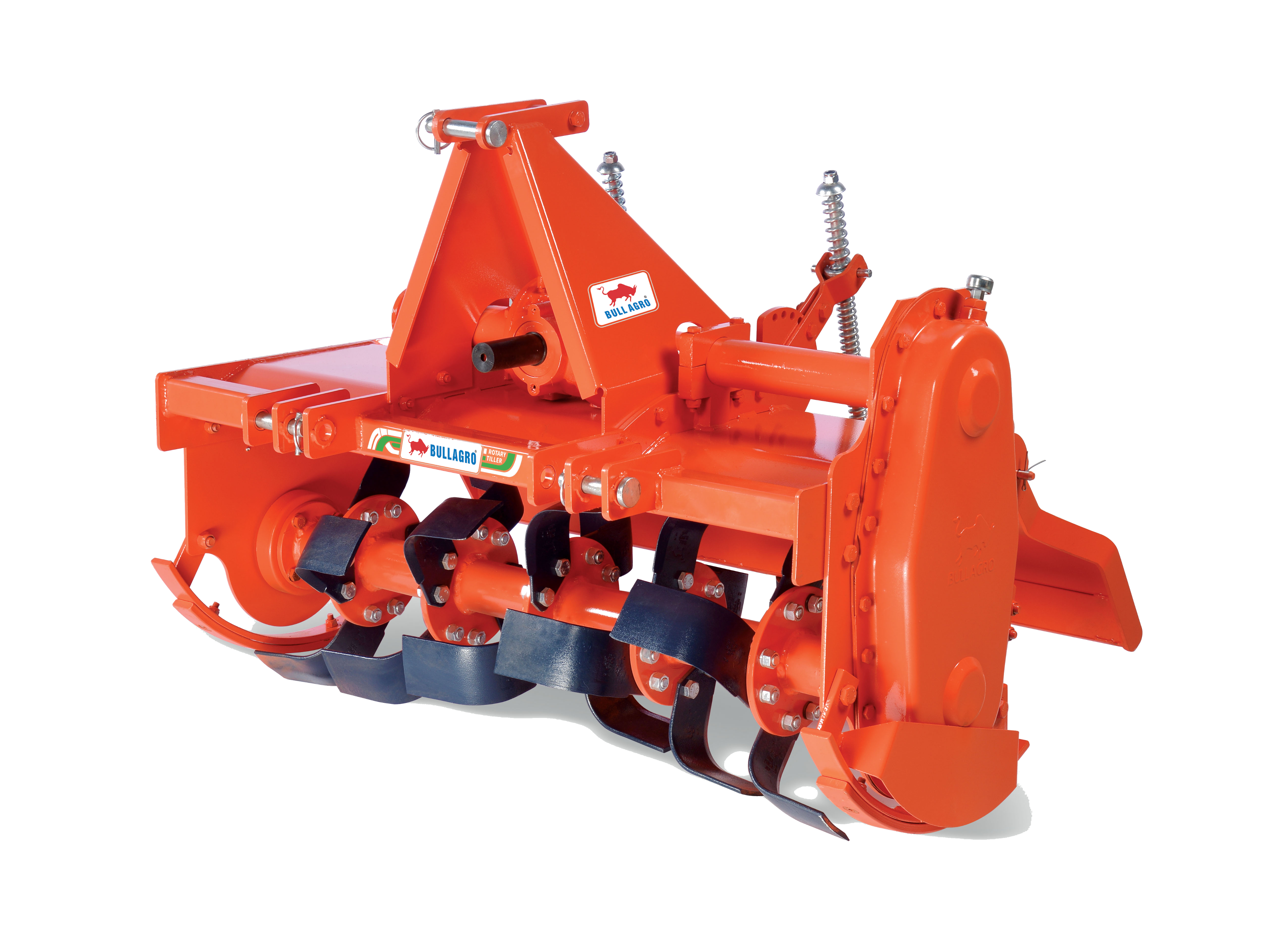

Mini
Mini
Small & Sturdy Suitable for ploughing in inter-crop cultivation
Salient Features & Performance Attributes
- Suitable for ploughing in inter-crop cultivation
- Banana. Coconut, Sugarcane, Orchards and other horticultural etc..
- The blades are fitted in the Helical arrangement is well
- suited for uniform tilling.
- Very low load to tractor and rotary tillers.
- The main frame is equipped with 3 point linkage.
- Suitable for all Mini tractors.
Technical Specifications & Dimension Chart
| SI.No | Series | Model | Working Width | Speed | Side Drive | Tractor HP | Weight | Type of Blade | No. of Blades | Input RPM | Rotor RPM | |
| 1 | Mini | 16 SSC | 825 mm | Single | Chain | 15–20 HP | 150 kg | L/C | 16 | 540 | 244 | |
| 2 | Mini | 20 SSC/SSG | 1050 mm | Single | Chain/Gear | 20–25 HP | 180/195 kg | L/C | 20 | 540 | 254/215 | |
| 3 | Orchard | 24 SSC/SSG | 1185 mm | Single | Chain/Gear | 25–30 HP | 195/210 kg | L/C | 24 | 540 | 248/215 | |
| 4 | Orchard | 30 SSG | 1280 mm | Single | Gear | 30–35 HP | 350 kg | L/C | 30 | 540 | 212 | |
| 5 | Orchard | 24 MSC | 1185 mm | Multi | Chain | 25–30 HP | 220 kg | L/C | 24 | 540/1000 | 234/271 | |
| 6 | Orchard | 30 MSG | 1280 mm | Multi | Gear | 30–35 HP | 370 kg | L/C | 30 | 540/1000 | 200/232 |
